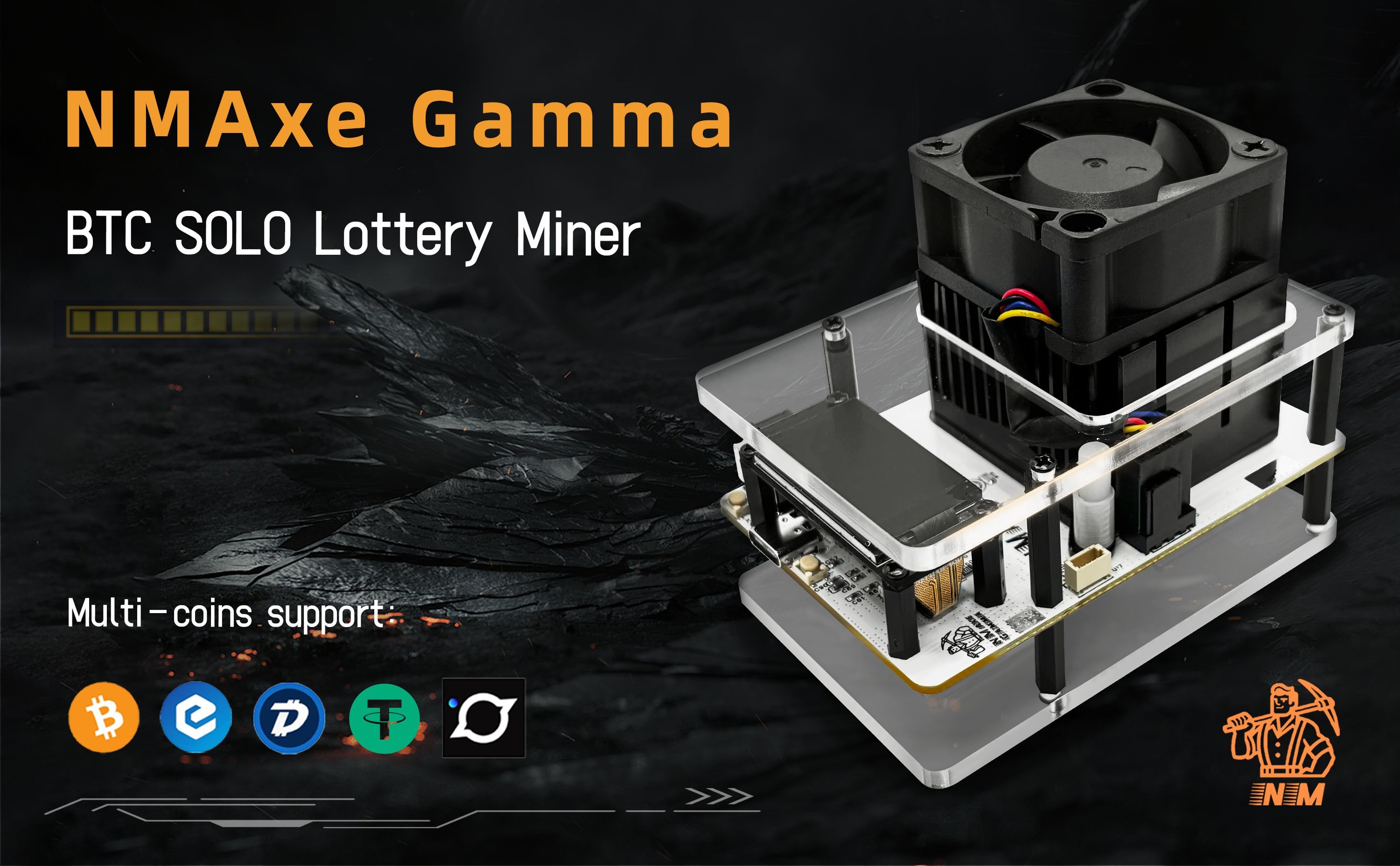

NMAxe Gamma Optimized Gamma NMMiner Official BM1370 ASIC BTC Solo Lottery Miner 1.2THs Open-source Quiet Home Using

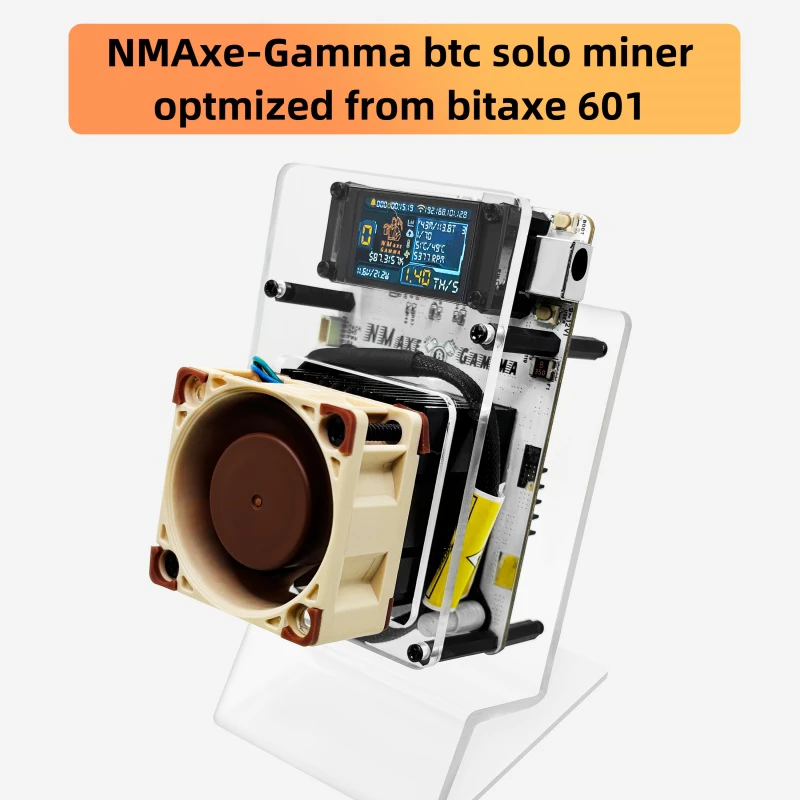

The NMAxe-Gamma is an official NMMiner development board featuring the BM1370 ASIC and ESP32-S3 with Wi-Fi and Bluetooth. It is a deeply optimized version of the Bitaxe 601 (Gamma), offering a smaller size and more stable performance. Designed as a solo lottery miner, it is perfect for solo miners aiming to strike a Bitcoin block. The NMAxe is your golden ticket to potentially earning the 3.125 BTC block reward. This high-efficiency, rewarding experience makes it the ultimate lottery miner on the market. For current NMMiner owners, the NMAxe-Gamma boosts your mining speed from 500 KH/s to 1000~1200 GH/s, increasing the winning probability by nearly 2 million times. Compared to the NMAxe, the NMAxe-Gamma uses similar power consumption while doubling the hashrate.

Notice

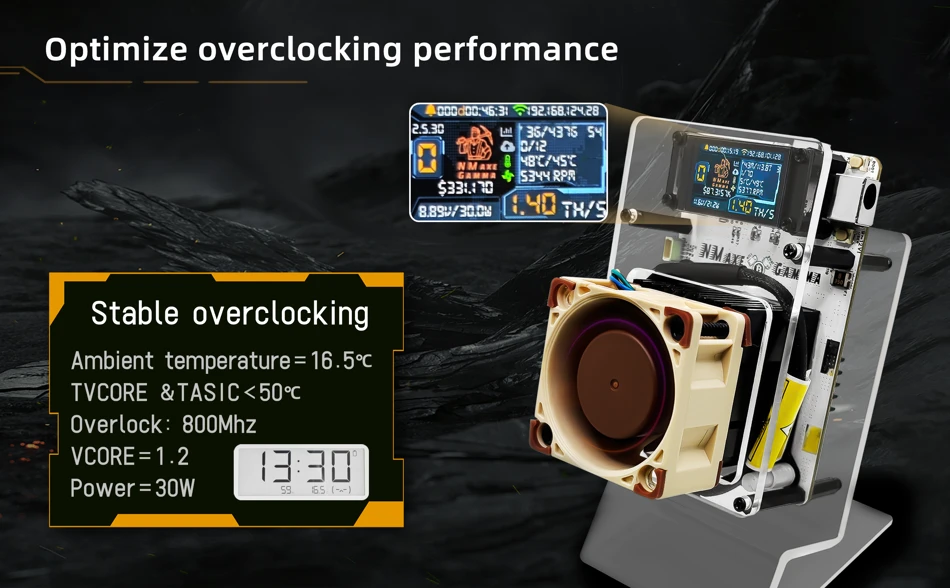

The hashrate is a fluctuating value that hovers around 1000 GH/s (900~1200 GH/s). Parameters should be set to a frequency of 625 MHz and a Vcore of 1200 mV.

It is recommended that users do not configure parameters that cause device power consumption to exceed 30W, and ensure the device temperature is maintained around 50℃.

Excessive temperature is not conducive to the long-term stable running of the device.

Specifications

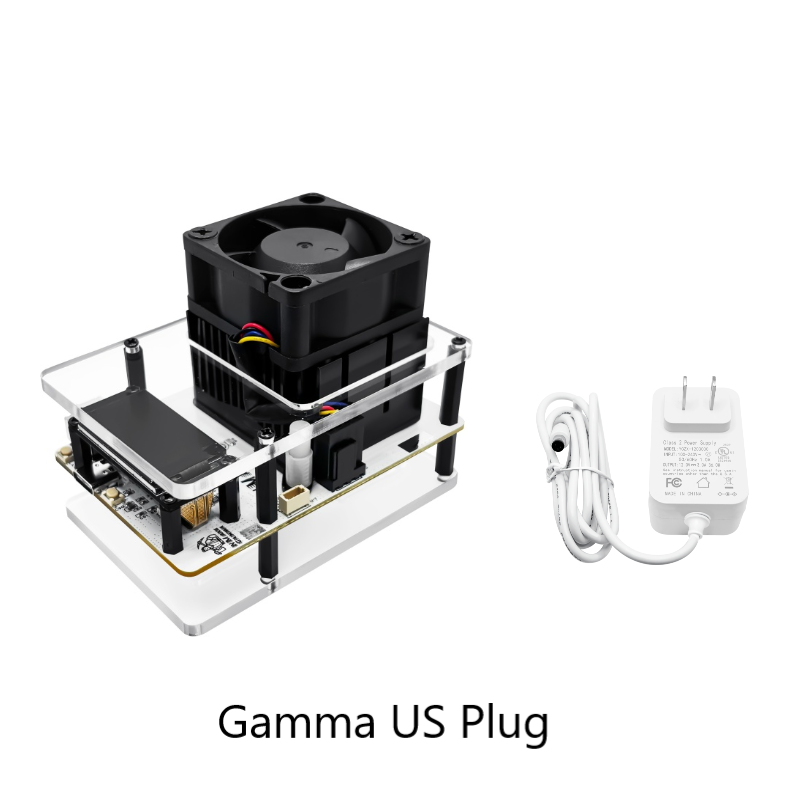

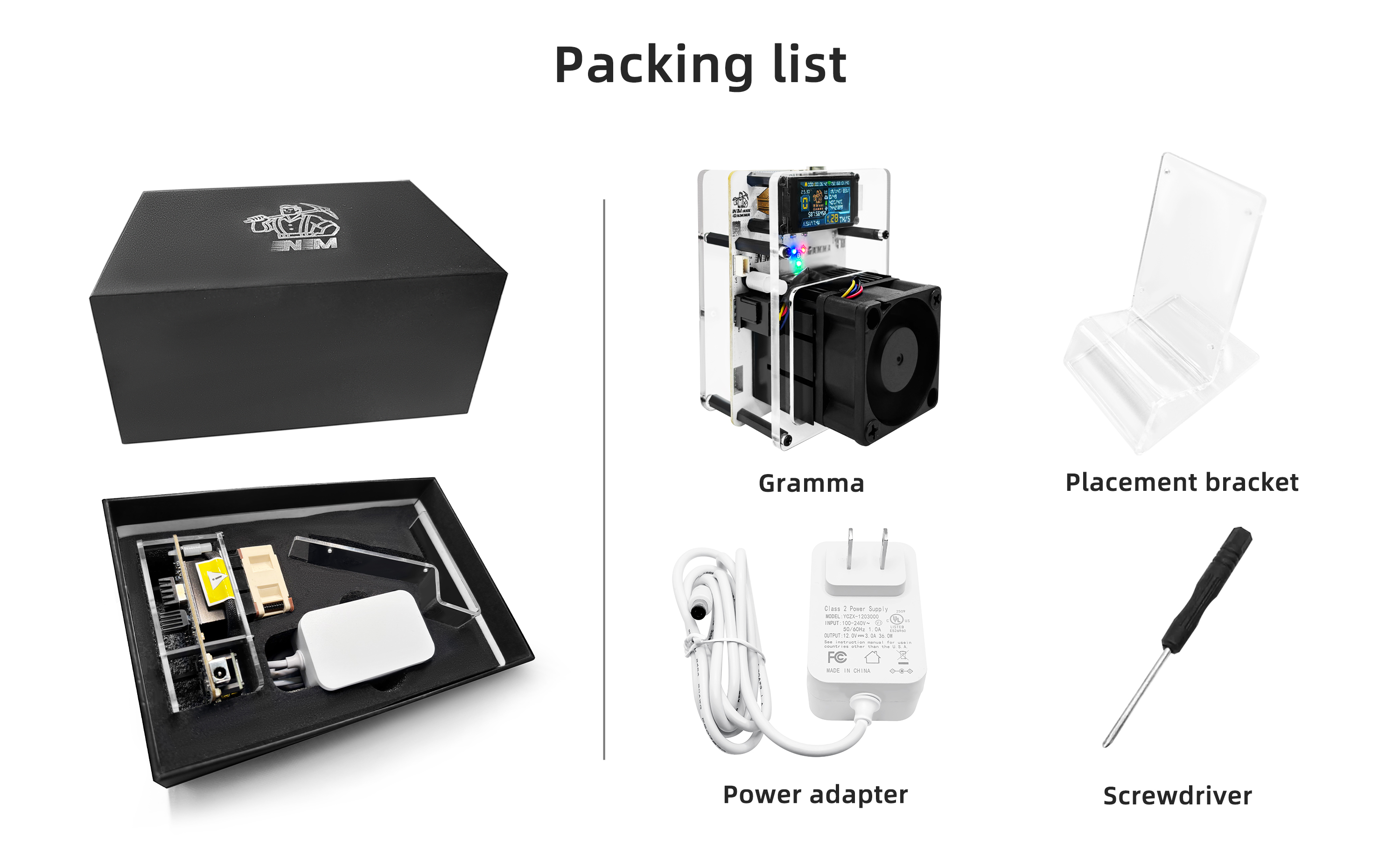

Packing List

The default packing list without selecting any accessories is as follows:

Main Features

• Full graphic screens over a 1.14 inch IPS screen.
• Bitmain’s BM1370 chip.
• Operates exclusively on 2.4 GHz Wi-Fi.
• Requires a 12V power supply with at least 3A (recommended).
• Supports normal USB-PD supply, supporting at least 9V/4A.
• Easy setup via the AxeOS portal.
• NMMiner Group Controller for monitoring; easily manages multiple devices, both NMMiner and NMAxe.
• Supports different cryptocurrencies using SHA256d solo mining, such as BTC/BCH/XEC/DGB.

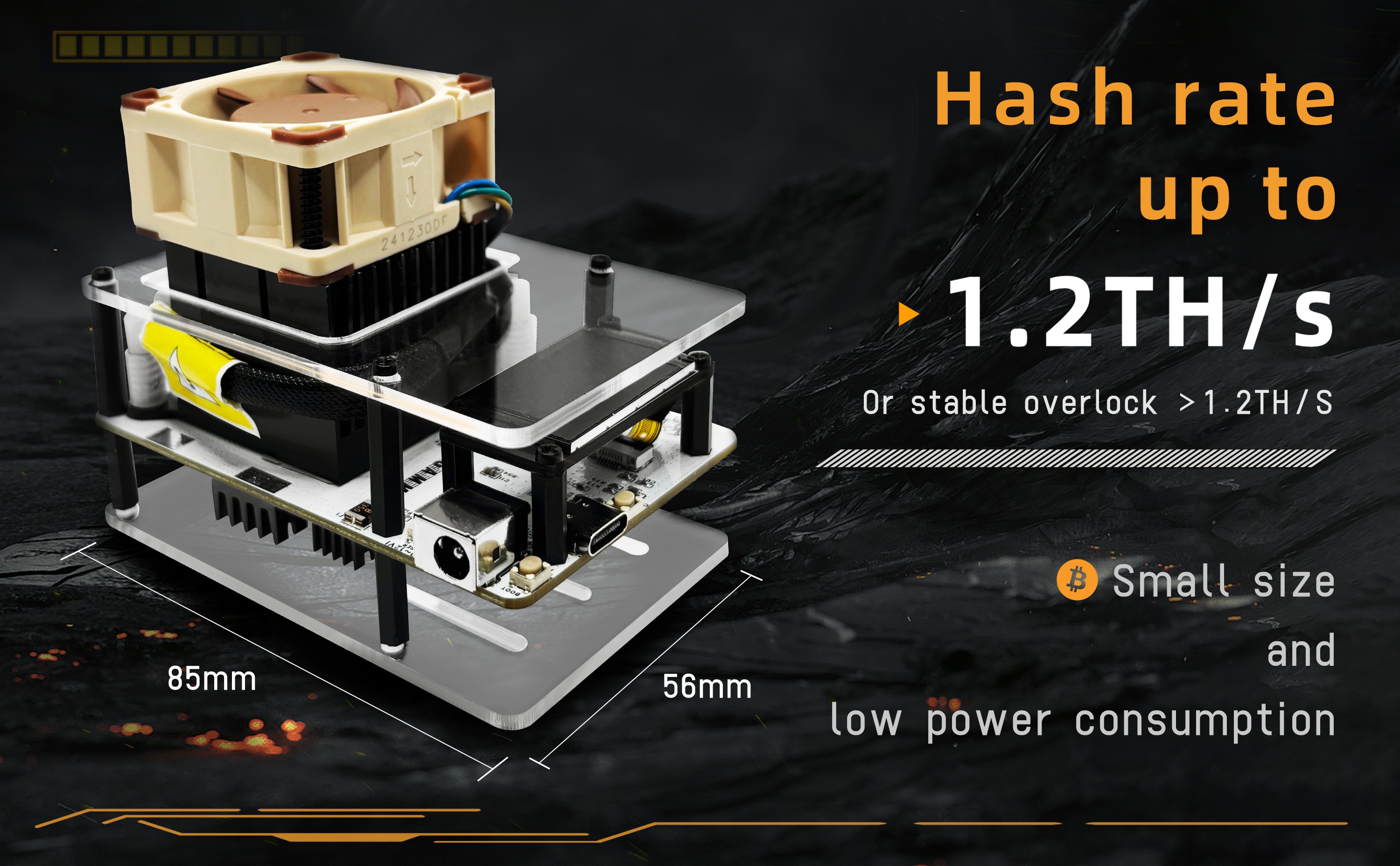

• The device is compatible with the Raspberry Pi 5-size structure and can be used with Raspberry Pi related shell devices.

Differences/Improvements from Bitaxe 601 Devices

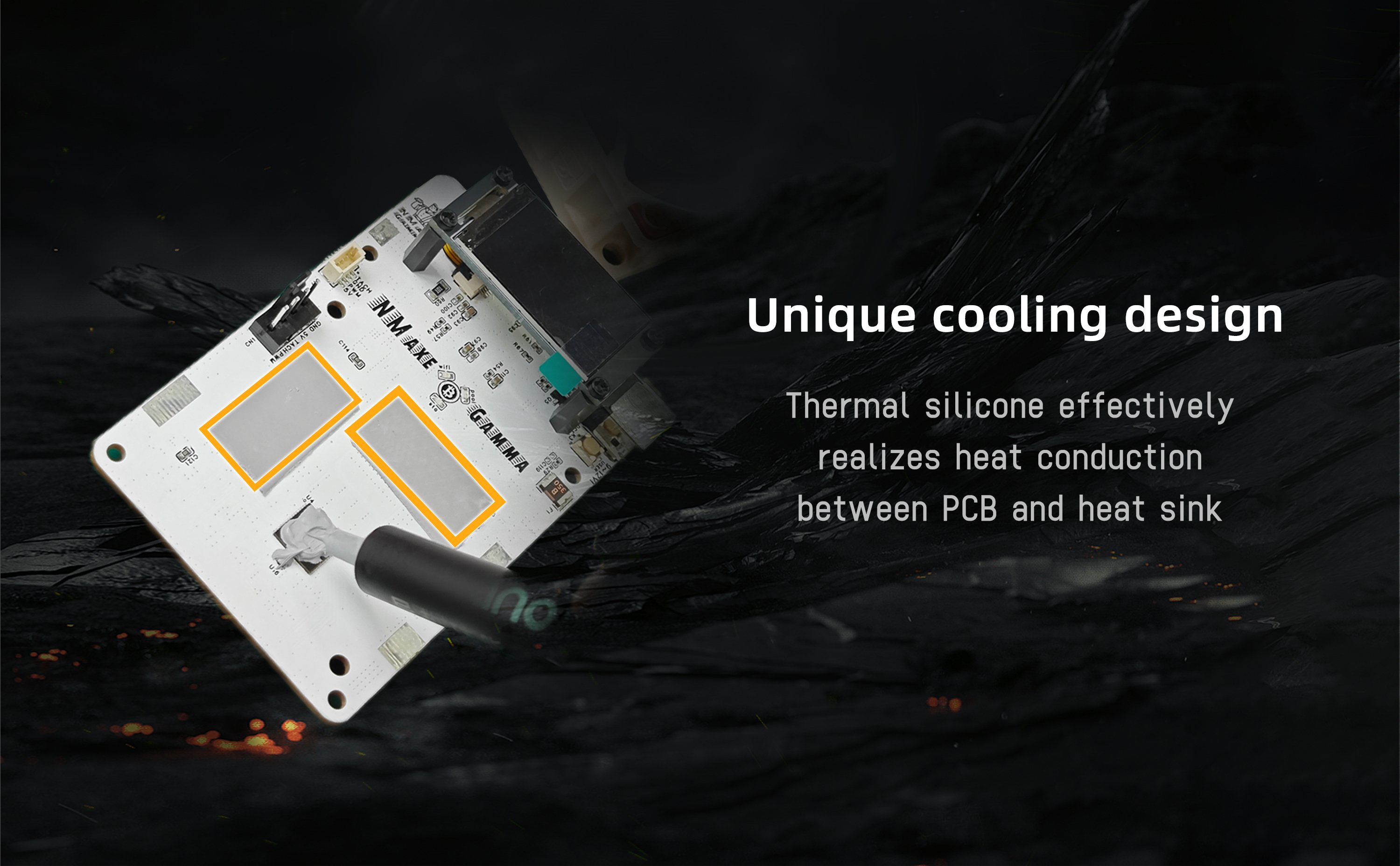

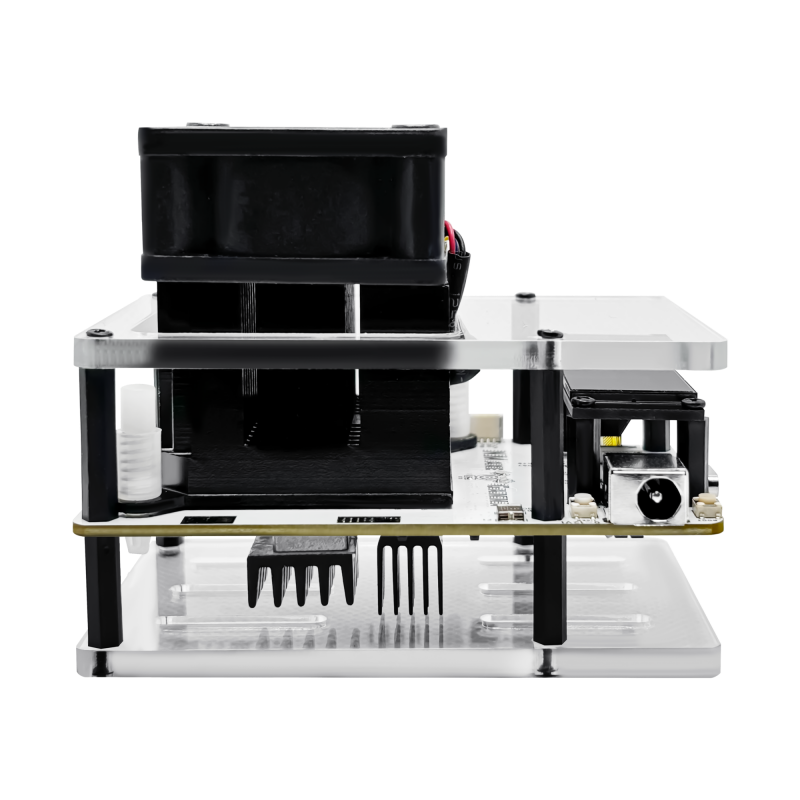

• Unique cooling design: Thermal silicone effectively facilitates heat conduction between the PCB and heat sink.

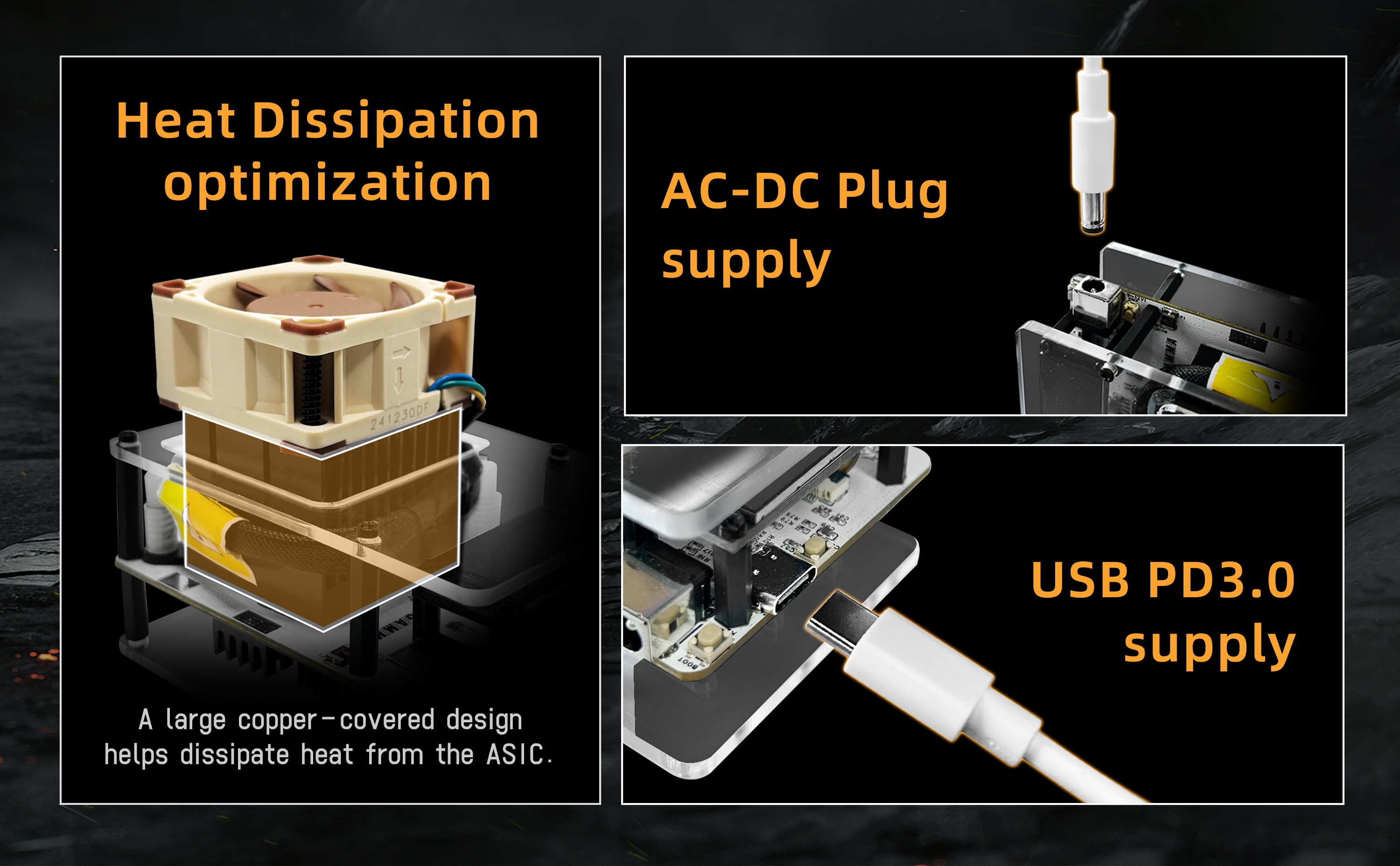

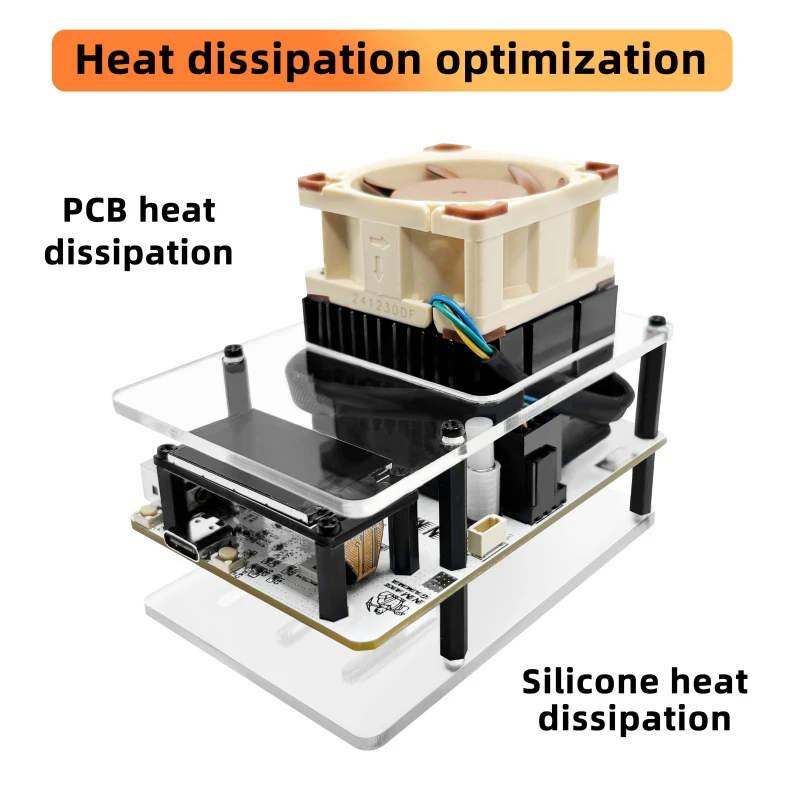

• Heat dissipation optimization: A large copper-covered design helps to dissipate heat from the BM1370 ASIC.
• The device supports USB PD power supply, so common mobile Type-C adapters can be used to power the NMAxe.

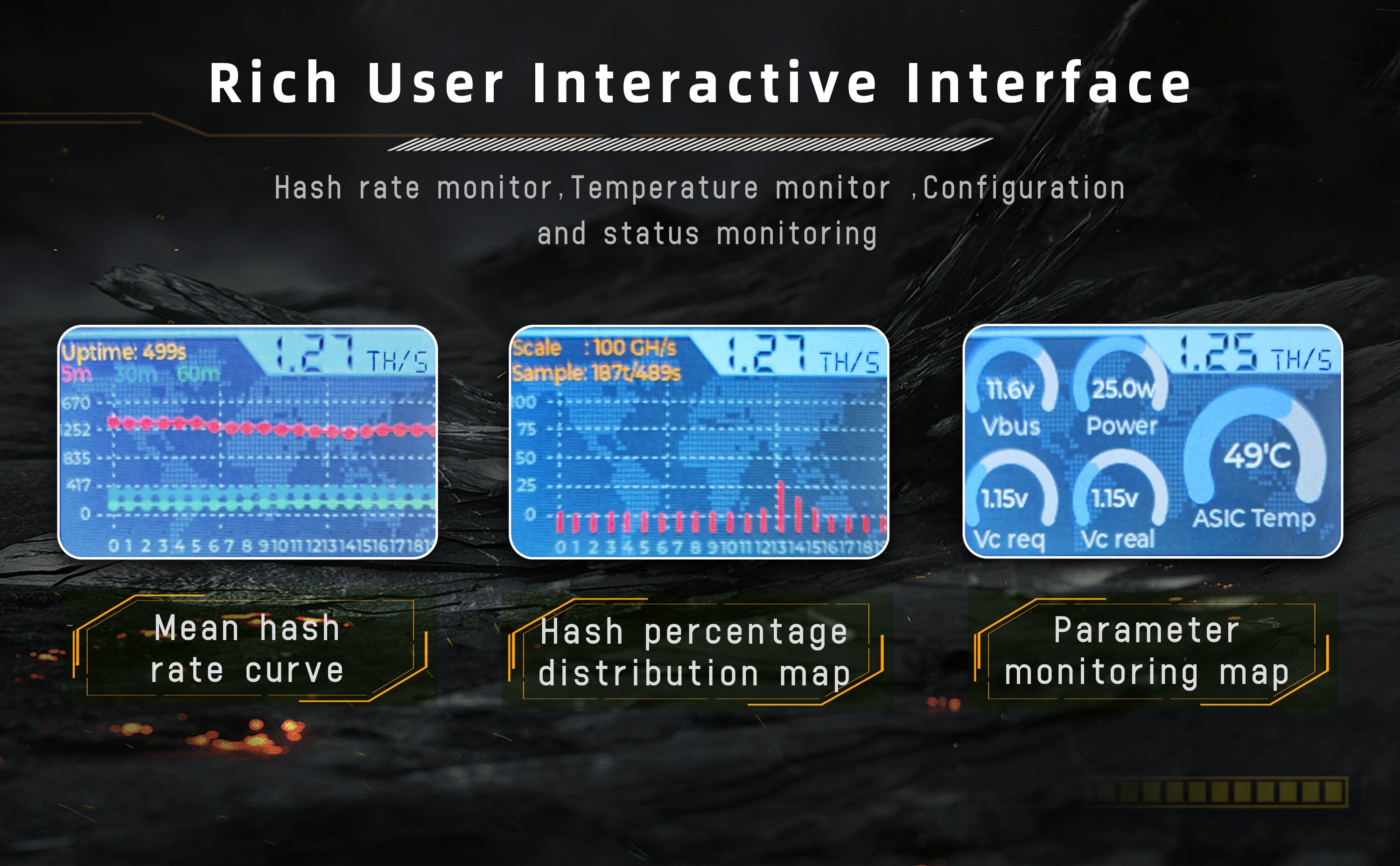

• Rich user interactive interface supporting hashrate monitor, temperature monitor, and parameter monitoring map.
• Portable power banks can supply power to NMAxe devices. A regular 10000mAh power bank can provide power for over 1 hour. So, even with a portable power bank and Wi-Fi hotspot, you won't miss the opportunity to get a BTC block reward.

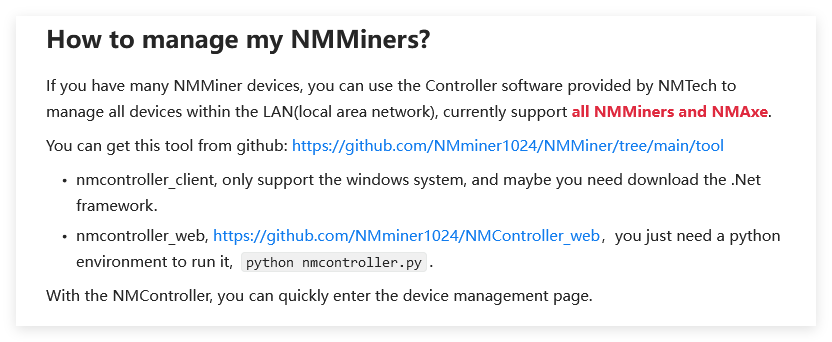

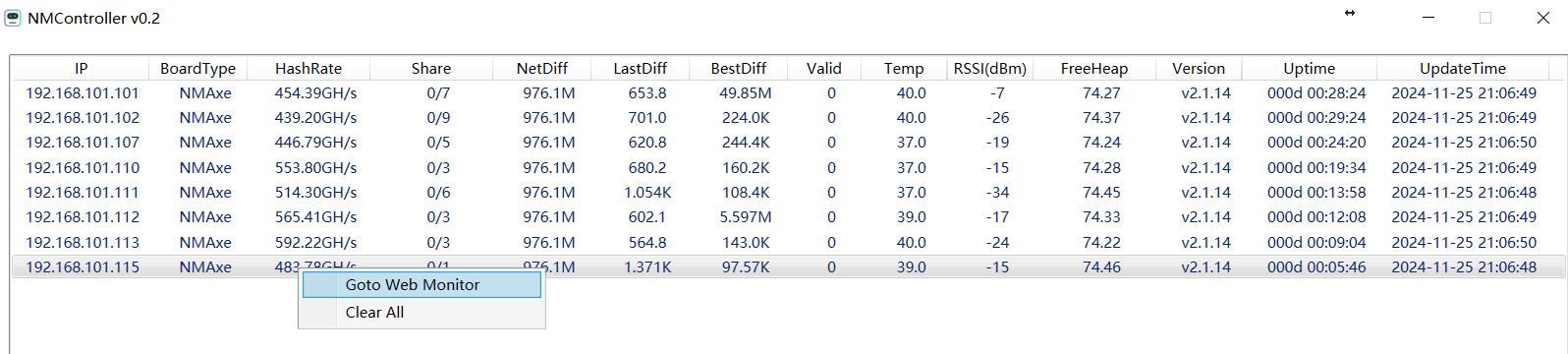

• NMMiner group controller helps manage NMMiner and NMAxe devices together, and the NMController provides easy access to AxeOS.

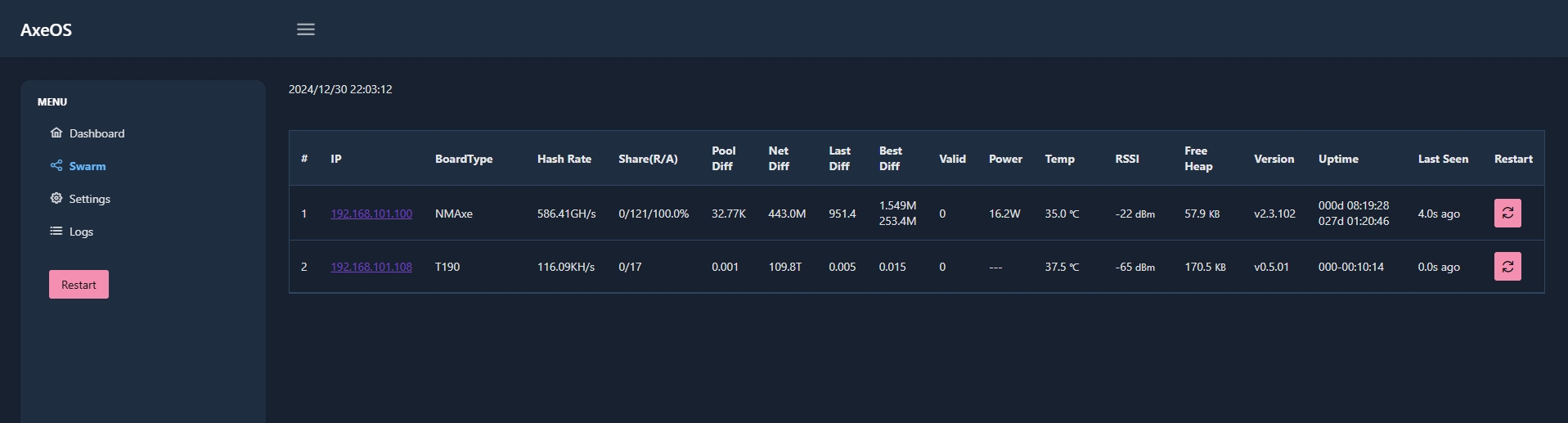

• From Version 2.5.50, we combined the NMController with AxeOS's swarm, which can automatically scan and manage NMMiner and NMAxe/NMAxe-Gamma devices together.

Contact Us & Join Us

• Our NMAxe Official Telegram: https://t.me/NMMiner
• Our Official Website: https://www.nmminer.com
• The web flash tool: https://flash.nmminer.com
• The NM XEC solo pool (fork from ckpool, friendly for Axe Devices): https://pool.nmminer.com

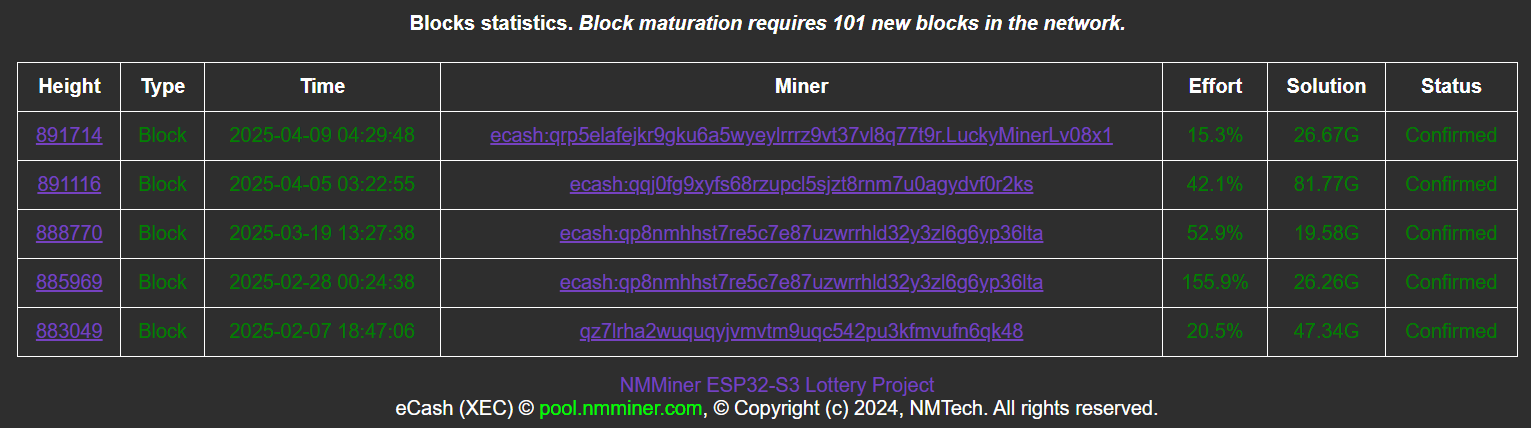

The pool has already hit 5 XEC blocks, with difficulty up to 81.77G.

Q & A
